PRODUCT DESCRIPTION
A smart ventilation unit for grow tents that provides low-noise ventilation, assists with heating/cooling and circulates fresh air. The inline duct fan can maintain the air flow even at high static pressure thanks to its inline mixed-flow design. Equipped with a PWM-controlled EC motor, it offers quiet and energy-efficient operation. The housing with motor, fan and blades can be easily removed for cleaning and maintenance purposes. It has an intelligent control system with programmable climate and time functions and can be connected to several UIS controllers. This product is part of the UIS™ platform, which can be combined to create your ideal grow environment.

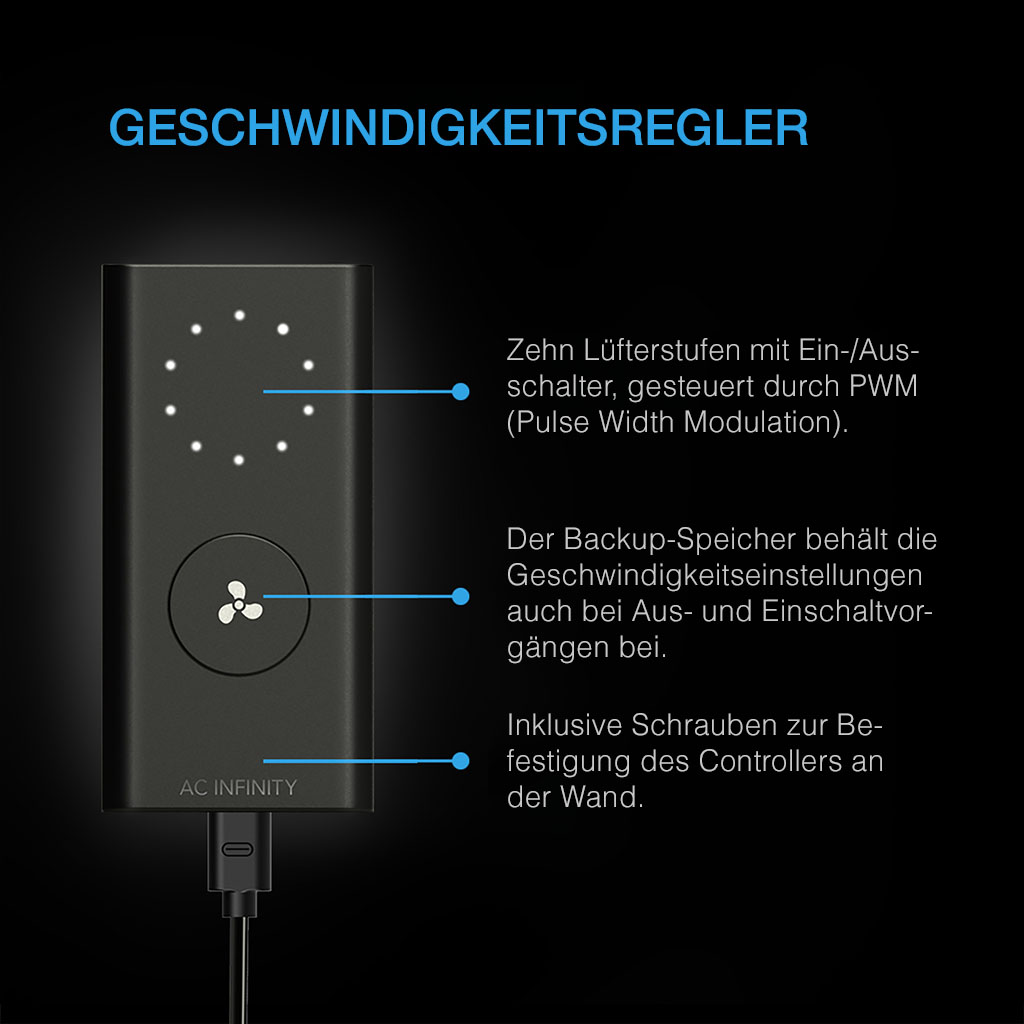

PRECISE SPEED CONTROLLER
To achieve optimum noise and airflow performance in different environments, the speed controller of the inline fan has ten levels. The powerful EC motor of the inline fan supports precise airflow control through the use of PWM control. This low-noise and energy-efficient design ensures quiet operation at very low speeds and prevents motor damage. low speeds and thus prevents engine noise.
It is also equipped with a backup memory that retains the last speed setting if the power supply to the control unit is interrupted.

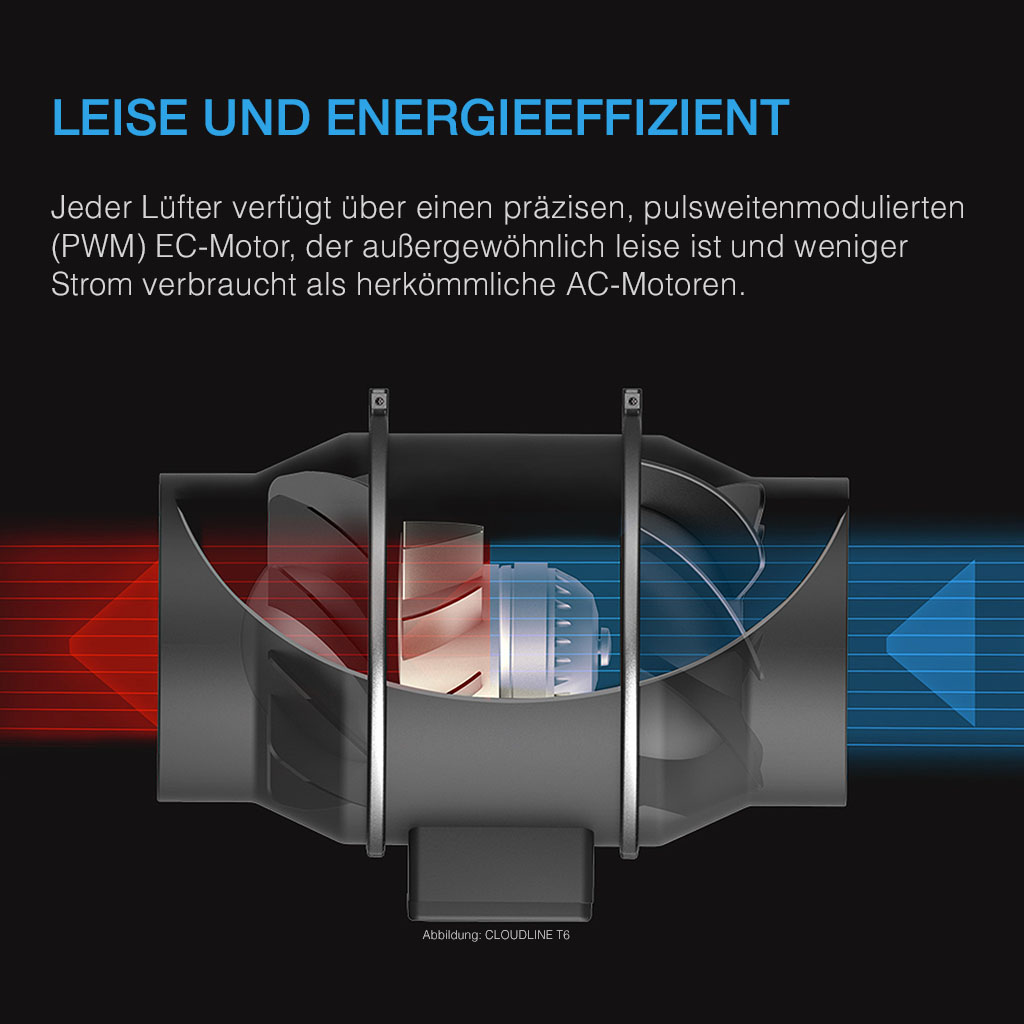

Thanks to the mixed flow design with stator guide vanes and two hydrodynamic flow circuits, the fan can also be used in areas with limited air flow. The motor can be mounted in any direction and is equipped with double ball bearings. The device is also protected against dust and liquids in accordance with IP44 and is perfectly suited for use in harsh environments.
AREAS OF APPLICATION

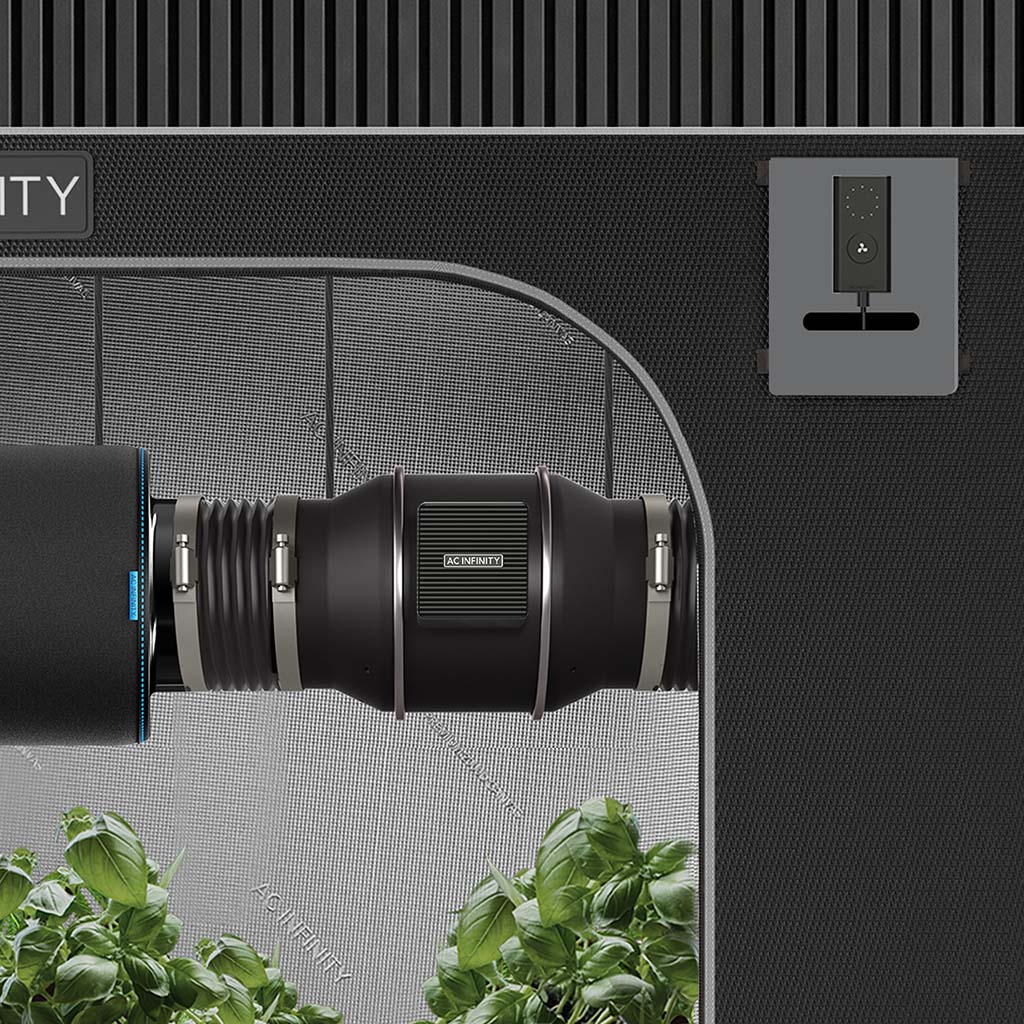

This low-noise fan system can be used in many areas. It is suitable, for example, for cooling rooms with audio-visual equipment, cabinets, shelves and, of course, it can be used in hydroponic rooms and grow tents.
| General information | |
| manufacturer | AC Infinity Inc. |
| Product name | CLOUDLINE S6 |
| Manufacturer number | AI-CLS6 |

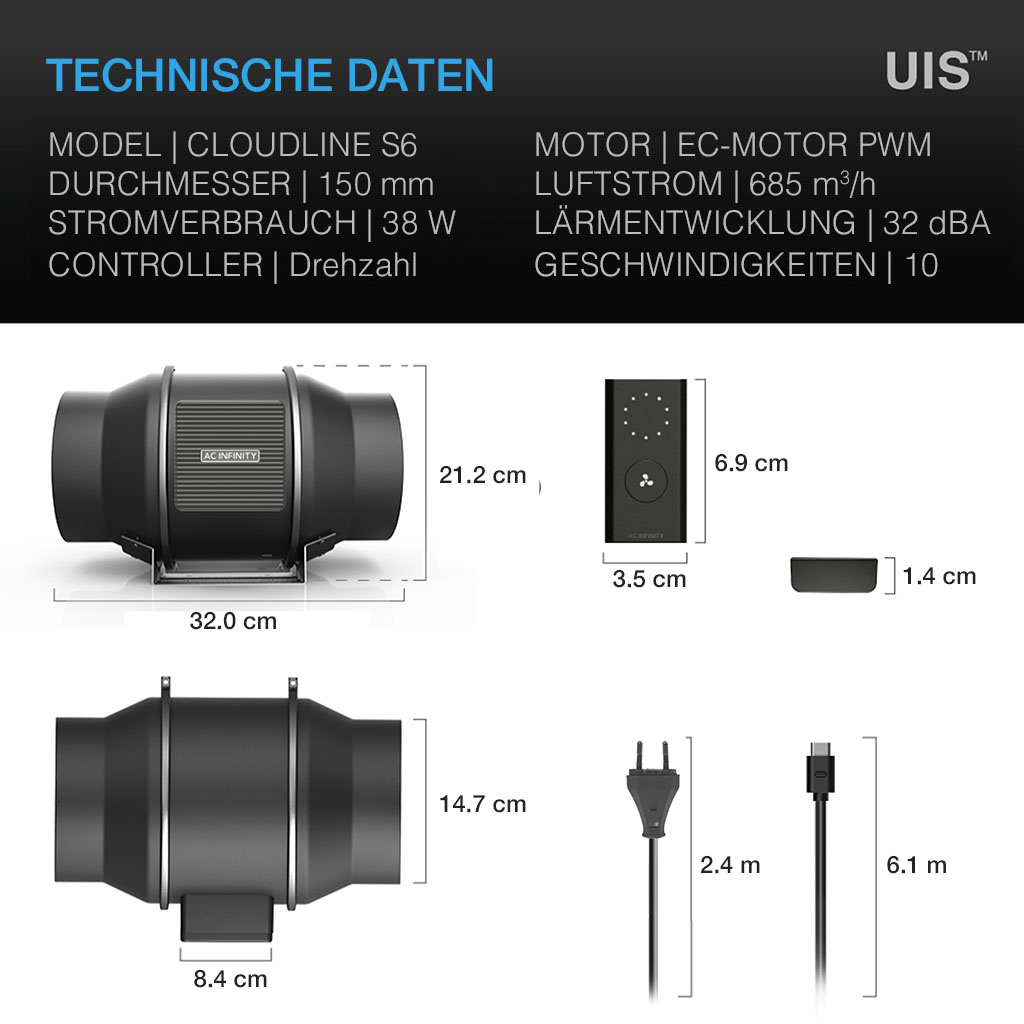

| Product dimensions | |
| Connection | 150 mm |
| Dimensions | 21.2 x 32.0 x 20.0 cm |
| Cable length to the controller | 6 meters |
| Performance and technical data Inline fan | |
| Total air flow | 683m3/h |
| Noise level | 32 dBA |
| Static air pressure | 503 Pa |
| Electrical voltage | 100 – 240 V (50/60 Hz) |
| Power max. | 70 W |
| Average power | 38 W |
| Amperage | 0,94 A |
| Power plug | Euro plug |
| Humidity range | 35 to 85% RH |
| Temperature range | 0 – 60 ? |
| Protection class | IP-44 |
| L10 Life expectancy | 67,000 hours |
| Certifications | CE, RoHS, ETL |
