CLOUDLINE PRO T4, quiet inline ventilation system with temperature and humidity control, 100 mm
PRODUCT DESCRIPTION
An intelligent inline fan designed for quiet ventilation of hydroponic rooms, heating/cooling of rooms, circulation of fresh air, extraction of projects and cooling of AV cabinets. With its inline mixed-flow design, the duct fan can maintain the air flow even at high static pressure. It is equipped with a PWM-controlled EC motor that operates quietly and energy-efficiently. The motor housing, in which the impeller and the fan blades are located, can be removed from the mounting frame for easy cleaning and maintenance. Includes an intelligent controller with dynamic climate and time programming and can be connected to several UIS devices. This product is part of the UIS™ platform of attachments and smart controllers that are designed to connect together to create your ideal environment.
SMART CONTROLLER
The CONTROLLER 69 PRO features intelligent programming that not only includes basic temperature, humidity and VPD triggers, but also allows you to set dynamic fan speeds that respond to their changes. You can go even further by setting a minimum speed at which the fan runs constantly and only increases when triggered. Timer, cycle and schedule modes allow individual activation as required for different purposes. Connect securely to the AC Infinity app via WiFi to use the automation functions from anywhere. You can access your fan remotely, activate programs, set notifications, view historical climate diagrams and export CSV data. This controller can be connected to up to four UIS devices, including products such as the CLOUDLINE, CLOUDRAY and IONFRAME series. With selected adapters, it can also be connected to your favorite grow light and socket device outside the UIS platform.
QUIET AND ENERGY-EFFICIENT DESIGN
Unlike conventional tube fans, which use an AC motor that is noisy and uncontrollable, this tube fan has an EC motor that is controlled using PWM (pulse width modulation). This technology enables the motors to run smoothly at extremely low speeds without generating additional heat or noise. In addition, the fan has a mixed flow with a stator blade and two hydrodynamic wind circuits. This achieves a high static pressure so that the fan can generate an air flow even in areas with limited air movement. The motor is equipped with two ball bearings that have a service life of 67,000 hours, so that the duct fan can be mounted in any direction. The fan has an IP44 protection rating and is therefore particularly dust and liquid-tight and also performs well in harsh environments.
AREAS OF APPLICATION
This quiet fan system is used in a variety of applications, e.g. for cooling AV equipment rooms, cabinets, shelves and cupboards. Due to its low noise level and advanced control features, it is also used in various air circulation and ventilation projects, such as hydroponic rooms and tents, bathroom and attic ventilation and other installations.
| General information | |
| manufacturer | AC Infinity Inc. |
| Product name | CLOUDLINE T4 |
| Manufacturer number | AC-CLT4 |

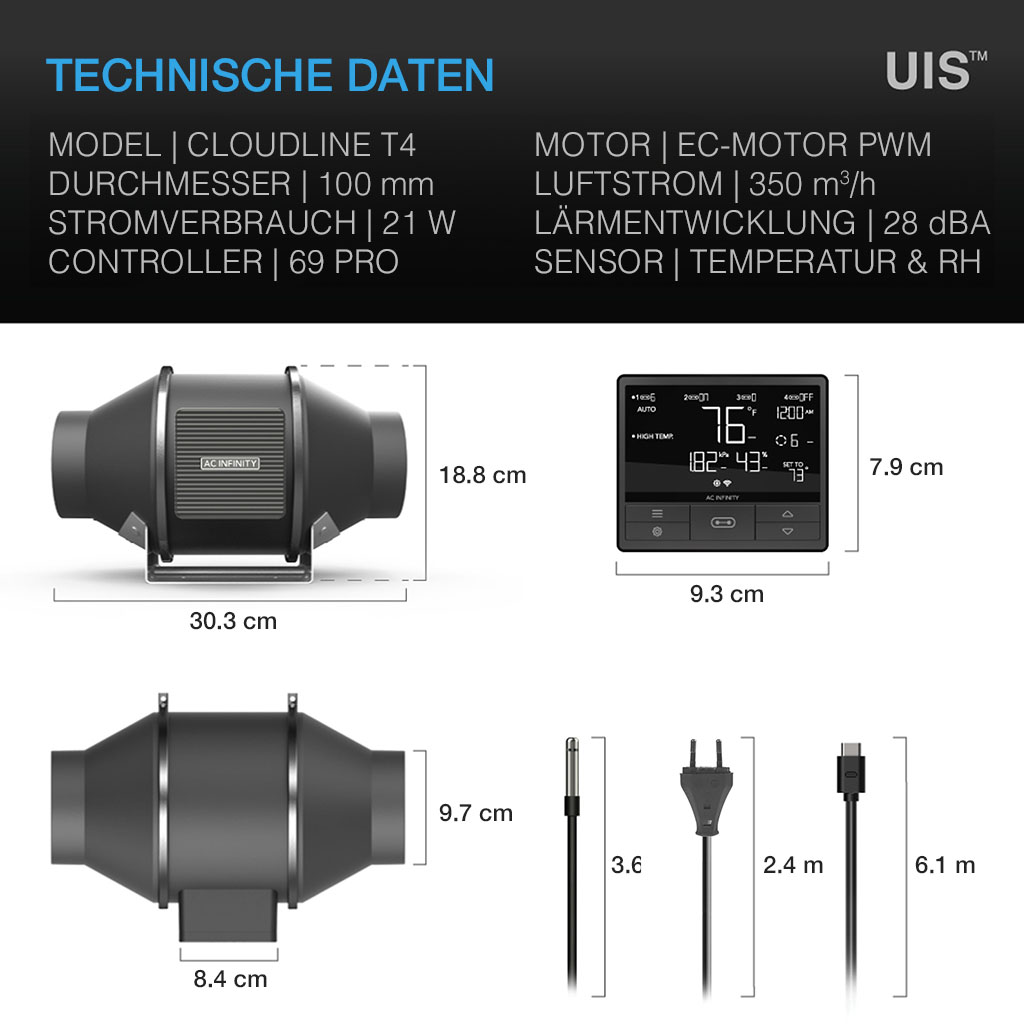

| Product dimensions Inline fan | |
| Connection | 100 mm |
| Dimensions | 18.8 x 30.3 x 17.6 cm |
| Cable length to the controller | 183 cm |
| Performance and technical data Inline fan | |
| Total air flow | 348m3/h |
| Noise level | 28 dBA |
| Static air pressure | 223 Pa |
| Electrical voltage | 100 – 240 V (50/60 Hz) |
| Power max. | 28 W |
| Average power | 21 W |
| Amperage | 0,4 A |
| Power plug | Euro plug |
| Humidity range | 35 to 85% RH |
| Temperature range | 0 – 60 ? |
| Protection class | IP-44 |
| L10 Life expectancy | 67,000 hours |
| Product performance and technical data – Controller | |
| Number of individually controllable devices | 4 |
| Max. Supported power | 10 W |
| Input voltage | 9 – 18 V |
| Power | 1 W |
| Amperage | 0,1 A |
| Humidity range | 35 to 85% RH |
| Temperature range | 0 – 60 ? |
| Certifications | CE, RoHS, ETL |
Shipping weight: 3.40 kg
