CLOUDLINE PRO S6, quiet inline fan system with speed controller, 150 mm

179,00

  • For low-noise ventilation of grow tents to dissipate heat and cold and supply fresh air.
  • Features a wired fan controller with 10 speeds and is compatible with all UIS controllers with intelligent programming.
  • The EC motor with PWM control ensures quiet and energy-efficient operation with minimal waste heat and noise.
  • The mixed-flow design with stator blades and hydrodynamic flow circuits in environments with high flow resistance enables optimum flow control.
  • Duct size: 150 mm | Dimensions: 200 mm x 320 mm x 215 mm | Air flow: 683m3/h| Noise: 32 dBA | Bearing: double ball bearing

Can be pre-ordered

Category:

Description

PRODUCT DESCRIPTION

A smart ventilation unit for grow tents that provides low-noise ventilation, assists with heating/cooling and circulates fresh air. The inline duct fan can maintain the air flow even at high static pressure thanks to its inline mixed-flow design. Equipped with a PWM-controlled EC motor, it offers quiet and energy-efficient operation. The housing with motor, fan and blades can be easily removed for cleaning and maintenance purposes. It has an intelligent control system with programmable climate and time functions and can be connected to several UIS controllers. This product is part of the UIS™ platform, which can be combined to create your ideal grow environment.

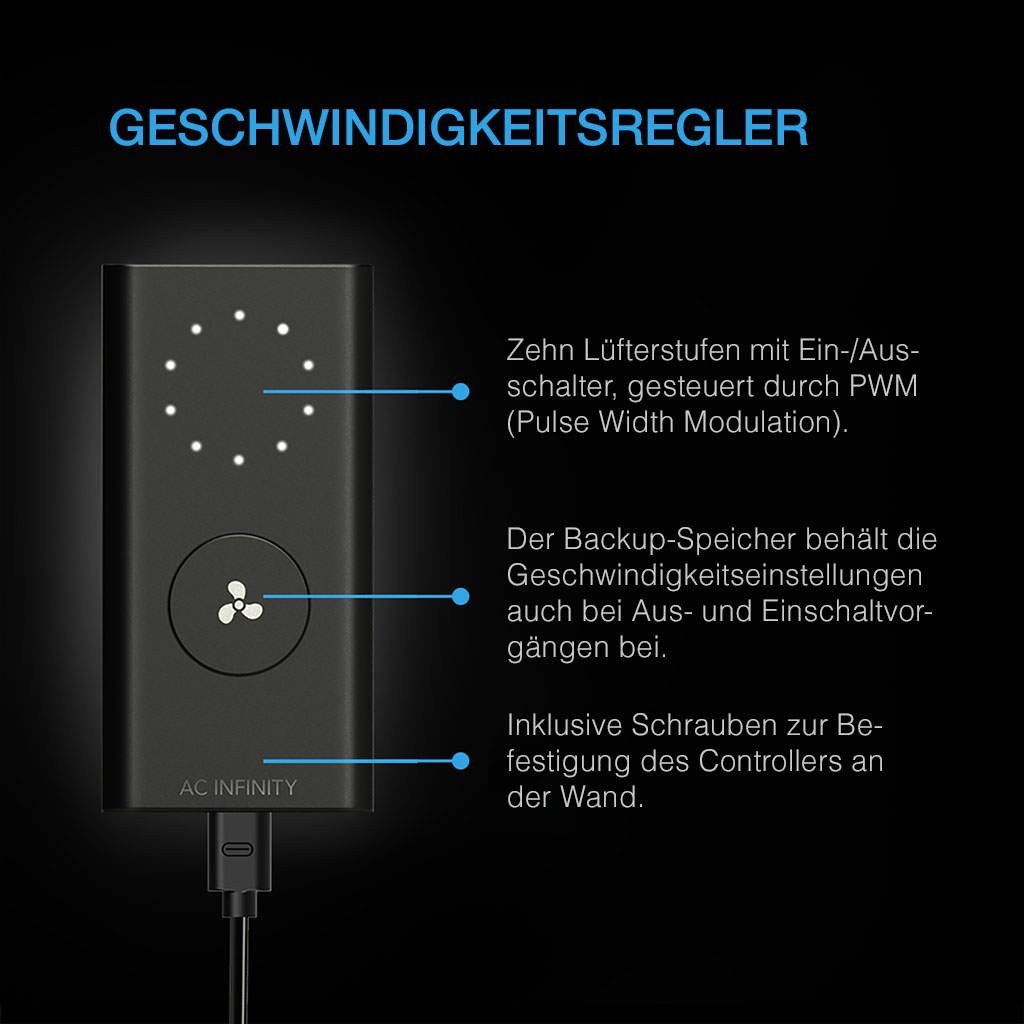

PRECISE SPEED CONTROLLER

To achieve optimum noise and airflow performance in different environments, the speed controller of the inline fan has ten levels. The powerful EC motor of the inline fan supports precise airflow control through the use of PWM control. This low-noise and energy-efficient design ensures quiet operation at very low speeds and prevents motor damage. low speeds and thus prevents engine noise.

It is also equipped with a backup memory that retains the last speed setting if the power supply to the control unit is interrupted.
Thanks to the mixed flow design with stator guide vanes and two hydrodynamic flow circuits, the fan can also be used in areas with limited air flow. The motor can be mounted in any direction and is equipped with double ball bearings. The device is also protected against dust and liquids in accordance with IP44 and is perfectly suited for use in harsh environments.

AREAS OF APPLICATION

This low-noise fan system can be used in many areas. It is suitable, for example, for cooling rooms with audio-visual equipment, cabinets, shelves and, of course, it can be used in hydroponic rooms and grow tents.



General information
Manufacturer AC Infinity Inc.
Product name CLOUDLINE S6
Manufacturer number AI-CLS6

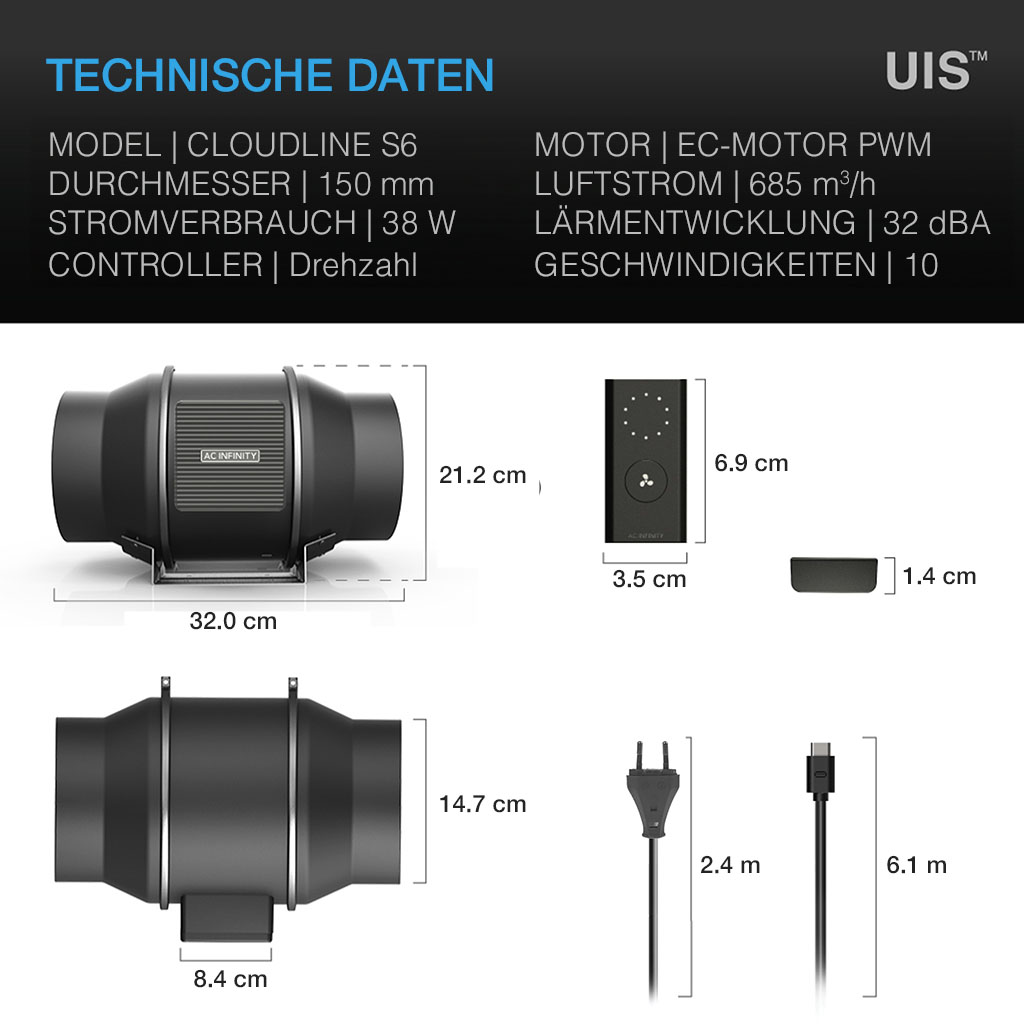

Product dimensions
Connection 150 mm
Dimensions 21.2 x 32.0 x 20.0 cm
Cable length to the controller 6 meters
Performance and technical data Inline fan
Total air flow 683m3/h
Noise development 32 dBA
Static air pressure 503 Pa
Electrical voltage 100 – 240 V (50/60 Hz)
Power max. 70 W
Average performance 38 W
Amperage 0,94 A
Power plug Euro plug
Humidity range 35 to 85% RH
Temperature range 0 – 60 ?
Protection class IP-44
L10 Life expectancy 67,000 hours
Certifications CE, RoHS, ETL



Shipping weight: 3.45 kg
