hortiONE Knob & Bluetooth Dimmer V3

89,00

Main features

  • Plug & Play for hortiONE 420 / 600 (cable included)
  • Sunrise / sunset with time control
  • Compatible with all 0-10V dimmable LED drivers
  • Can connect up to 3 LED drivers
  • Rotary knob dimming (including power off)
  • Bluetooth direct connection without cloud (optional)
  • Smart capability (including Tuya Cloud, optional)

Optional power supply via USB for LED drivers without 12VAUX connection.
Even without a cloud connection, several dimmers can be organized in groups and controlled simultaneously.

In stock

SKU: HO-DV3BT Categories: ,

Description

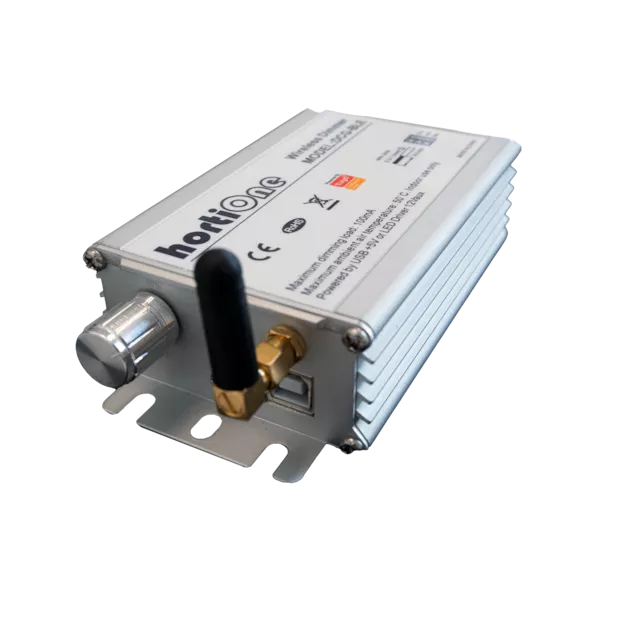

hortiONE Button & Bluetooth Dimmer

horitONE Dimmer Button & Bluetooth can control up to 3 LED drivers simultaneously. hortiONE 420 / 600 models are plug & play. The supply voltage comes either directly from a driver with 12V AUX. If this is not available, a USB charger with a USB-A interface can be used. The dimmer is therefore compatible with all 0-10V dimmable drivers. Included are 3 cables for hortiONE LED. These can optionally be removed and all compatible drivers can be connected (DIY). There are 3 function modes: 1. KNOB, 2. Bluetooth (directly from smartphone to dimmer) with time control and sunrise/sunset function. 3. Bluetooth with gateway (download “Tuya Smart” app) so that the dimmer can be controlled via a cloud and also connected to external sensors.

Main features

  • Plug & Play for hortiONE 420 / 600 (cable included)
  • Sunrise / sunset with time control
  • Compatible with all 0-10V dimmable LED drivers
  • Can control up to 3 LED drivers
  • Rotary knob dimming (including power off)>
  • Bluetooth direct connection without cloud (optional)
  • Smart capability (including Tuya Cloud, optional)

Optional power supply via USB for LED drivers without 12VAUX connection. Even without a cloud connection, several dimmers can be organized in groups and controlled simultaneously.

Technical data:

  • Input: LED driver 12V AUX or power supply via USB +5V
  • Output: 0-10 VDC
  • Maximum dimming load: 100 mA
  • Number of channels: 1
  • Number of connections: 3
  • Maximum ambient air temperature: 50 °C
  • Dimensions: 130x68x34 mm

Dimming options

1. dimming via knob control (without Bluetooth or wireless)

  • OFF – 20% – 40% – 60% – 80% – 100%

2. bluetooth

The connection only exists between the dimmer and the smartphone. Both devices must be within signal range. The distance or range depends on the surroundings. The dimmer is then not visible on the Internet, WLAN or as a Bluetooth device for other devices.

  • Download “Tuya smart App” (available free of charge in the App Store or Google Playstore)

3. bluetooth smart (requires gateway!)

Control your hortiONE LED grow light via the internet from anywhere in the world by simply connecting to external services such as Alexa or Google. You can also connect the hortiONE Dimmer to external sensors for CO2, light, humidity or temperature, for example. You can monitor the sensor values in the same app. These values can also be used to control your Growled lamp according to limit values. For example, it would be possible to increase the light intensity if the C02 value is above x ppm (a defined value that you set in the app). You can find a description in the data sheet.

Note: The required gateway and sensors are third-party components and are not provided by hortiONE.

Scope of delivery:

  • hortiONE V3 Knob & Bluetooth Dimmer incl. Three pre-assembled connection cables for drivers

Suitable for:

  • hortiONE 420 V3 LED 150W incl. Power supply unit
  • hortiONE 600 V3 LED 220W incl. Power supply unit
