Go BEYOND PAR with our Phyto-Genesis Spectrum®
The Phyto-Genesis Spectrum has been fine-tuned to not only grow plants, but also to produce more compact, more productive and higher quality flowers, fruits and leaves. Unlike most LED grow lights that use white or white and red LEDs, we use 8 different LED colors to achieve specific plant responses known as photomorphogenesis.
Our spectrum triggers the hormonal response of plants to different light colors and the ratio of these colors to minimize stem growth and maximize flowering and fruiting. Compact, bushier plants are not only easier to work with, but also maximize the yield per square metre.
Ultraviolet
3% ultraviolet light (<400nm) mimics the natural UV light of the sun and ensures that the plants become bushier and more compact, are more resistant to pathogens and insects and produce more terpenes and pigments.
In contrast to additional UV light bars, PhytoMAX-4 distributes the UV light evenly over the entire cultivation area at a concentration that provides your plants with the benefits of UV light throughout the entire growth cycle and is not just limited to the last few weeks of flowering.
Infrared / Far red
Infrared/far-red light (700-750 nm) increases photosynthetic efficiency through the Emerson effect. Too much of it can lead to stem elongation, but when paired with the right ratio of red and blue light, as is the case in the Phyto-Genesis spectrum, it increases yield.
Violet
Violet light (400-450 nm) penetrates better into dense plant canopies to nourish the lower leaves, allowing high quality flowers and fruit to grow further down the plant.
Blue
Blue light (450-480 nm) stimulates chlorophyll B photosynthesis more efficiently than green or yellow light and helps the leaves to remain more compact and penetrate the canopy better.
Red
Red light (600-700 nm) drives photosynthesis, but can also cause plants to elongate their stems if it is not combined with an adequate amount of blue light.
PhytoMAX-4 features
Unsurpassed yield and quality
The PhytoMAX 4 lamps are designed for growing crops of the highest quality and quantity. Rather than striving for the highest possible photons per watt, PhytoMAX-4 is designed to achieve the highest yield per watt while maximizing the production of terpenes, pigments and cannibinoids.
Experience
Black Dog has been perfecting grow lights and supporting its customers since 2010 – we are one of the oldest existing manufacturers of LED grow lights.
Customer service
We have grown thousands of plants ourselves with our lights and our customer service is second to none, from lighting questions to gardening problems. Whether you are growing 4 or 40,000 plants, we have the experience to help you.
Dimmable
Dimmable from 15% – 100% with industry-standard 0-10V dimming controllers.

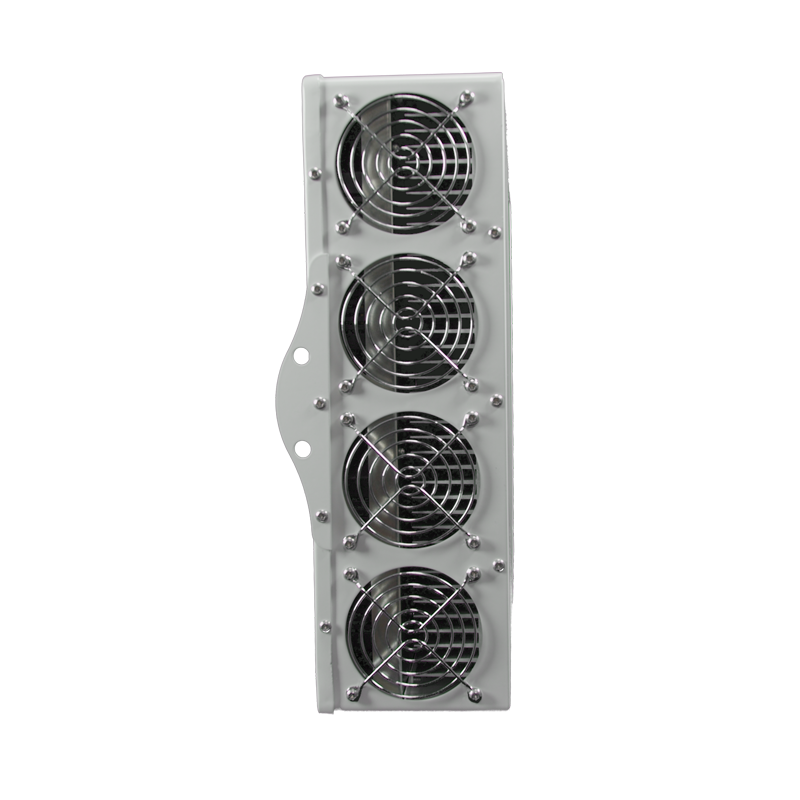

Reliable active cooling
PhytoMAX-4 increases efficiency and maximizes service life by actively cooling the LEDs. Cooler LEDs run more efficiently and have a longer service life, especially with the special UV and violet LEDs we use. Although fans are a moving part, none have ever failed in tens of thousands of lights over the last 13 years, and our patented design includes multiple redundant fans. Even if one of the two lamps should fail, it will still work perfectly.
Developed and assembled in Colorado
We use only the highest quality parts and have been perfecting the PhytoMAX design for over 8 years – these lights are built to last!
Hanging bracket included
Each light comes with a pair of V-hooks and cable hangers with ratchet.
PhytoMAX-4 8S Specifications
Photon flux (μmol/s) | |||
---|---|---|---|
PBAR 280-800nm |
UV 280-400nm |
PAR 400-700nm |
IR 700-800nm |
1062 | 31 | 952 | 79 |
Dimming | 0-10V, 15-100% |
---|---|
Dimensions | 37 x 37 x 11 cm |
Weight | 11.8kg |
Power output | 500 watts |
Certifications | UL 1598, UL 8800, ETL, CE, FCC, RoHS |
Mean time before failure | > 70,000 hours |
Number of LEDs | 224 |
Amp Draw | 5.0 @ 100V 4.17 @ 120V 2.4 @ 208V 2.17 @ 230V 2.08 @ 240V 1.81 @ 277V (SC model only) 1.44 @ 347V (SX model only) |
Length of the mains cable supplied | 2.4 meters |
Power cable options | NEMA 5-15, NEMA 6-15, NEMA 7-15 (SC model only), pigtails |
AC voltage range | SP model: 100-250V (50 / 60 Hz) SC model: 100-277V (50 / 60 Hz) SX model (special order): 347V |
Power factor | 0.99 |
Operation Ambient temperature range | -20 to 40 °C |
BTU | 1705 |
Expected service life of the fans | > 70,000 hours |
Guarantee | 5 years |
